GFS-400-ES

Solar Energy Storage

The GFS-400-ES is a high-capacity off-grid energy storage system built on the same proven hardware as the GFS-400 solar street light, without the integrated luminaire. It powers surveillance, communications and other external equipment where grid access is limited or cost-prohibitive.

Used by councils, transport authorities and remote operations for dependable, standalone power.

Category:

Description

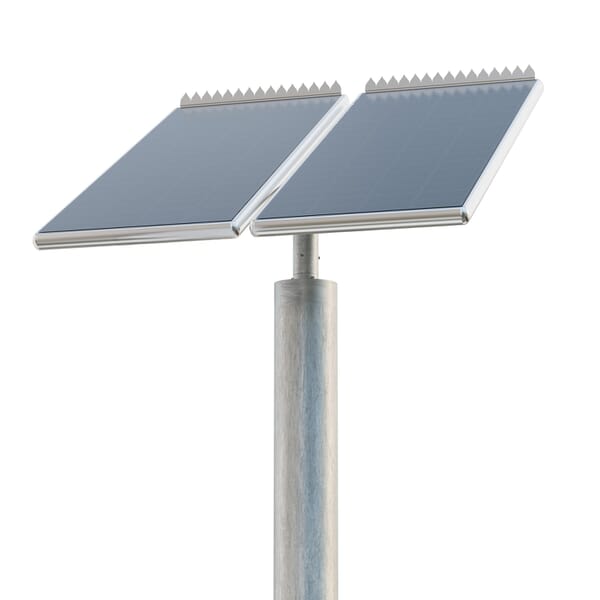

GFS-400-ES solar energy storage system

The GFS-400-ES is a high capacity off grid power unit built on the proven GFS-400 platform, without the luminaire. Twin 225 Wp monocrystalline panels (450 Wp total) on a hot dip galvanised Q355 steel pole charge sealed GEL batteries, supplying surveillance, communications and other site equipment where grid access is limited or too costly.

Storage is two sealed GEL 24 V batteries (2,640 Wh) as standard, with LiFePO4 48 Ah modules available. Tapered poles come in 6 m, 9 m and 10.5 m, on fixed base or slip base foundations.

Options include a Bluetooth adapter, a pole mounted on/off switch and a lockable battery box. Each system carries a 5 year complete unit warranty.

Key Features

Proven platform. The GFS-400 hardware, trusted by councils, transport authorities and remote operations, without the luminaire.

450 Wp solar capture. Twin 225 Wp monocrystalline panels.

Choice of storage. Sealed GEL 24 V (2,640 Wh) standard, or LiFePO4 in 48 Ah modules of 1,229 Wh.

Poles from 6 m to 10.5 m. Q355 steel tapered poles, hot dip galvanised inside and out, on fixed base or slip base foundations.

Built for exposed sites. IP66 with IP68 connectors and operation from −20 °C to 60 °C.

Security options. Solar panel guard, bird guard, anti climb spikes and a lockable battery box.

Technical

Solar & Battery
Solar Panels 2 × 225 Wp monocrystalline (450 Wp total)
Panel Efficiency Rating 21%
Battery Type Sealed GEL 24 V (standard)
LiFePO4 (optional)
Battery Capacity GEL 220 Ah / 2,640 Wh (2 batteries)
LiFePO4 48 Ah modules, 1,229 Wh each
Battery Weight GEL 27.0 kg (pair)
Nominal Voltage 24 V DC
Estimated Autonomy (1) 3–7+ nights
Battery Box Optional lockable battery box
Operation
Controls Bluetooth adapter, pole-mounted on/off switch (optional)
Pole & Mounting
Pole Heights 6 m, 9 m, 10.5 m
Solar Panel Spigot 76 mm
Pole Material Q355 steel tapered pole, hot-dip galvanised inside and out
Foundation Fixed-base (6 m, 9 m)
Slip-base (9 m, 10.5 m roadway)
Design & Compliance
IP Rating IP66 / IP68 Connectors
Operating Temperature −20 °C to +60 °C
Security Options Solar panel guard, bird guard, anti-climb spikes
Certifications CE, ISO 9001
Warranty 5-year complete unit warranty

(1) Autonomy and available capacity depend on location, load and configuration.

FAQ

What is the difference between the GFS-400-ES and the GFS-400?

The GFS-400-ES is solar capture and battery storage only. The GFS-400 adds the Aspire luminaire and LED arm.

Should I choose GEL or LiFePO4 batteries?

Sealed GEL 24 V (2,640 Wh) is standard. LiFePO4 comes in 48 Ah modules of 1,229 Wh each, which suits sites needing more storage.

What wind regions can it be installed in?

The standard 6 m pole is rated to AS/NZS 1170.2 wind region C. Other regions and pole heights are engineered per project.

What maintenance does it need?

Very little. Clean the solar panels periodically and replace the batteries as needed over the life of the system.
